How to Fill Silicone Gummy Molds Without a Universal Depositor
Yes—large commercial silicone gummy molds can be filled without a universal depositor. A controlled pour-and-scrape process can work when the formula stays fluid long enough, the mold is fully supported, and the operator uses consistent scraper passes. Before making it a standard production method, validate fill consistency, finished-piece weight, defects, labor, and yield.
This guide explains the process shown in our original Gummy Molds production footage and the factors that should be tested with your actual formula, mold, batch temperature, working time, and quality requirements.
Best fit
Trials, early production, and operations whose formulation remains fluid enough for controlled spreading.
Must validate
Fill level, piece weight, defects, working time, material loss, cleanup, labor, and repeatability.
Consider a depositor when
Required output, portion control, labor reduction, or line integration exceeds what the manual process can deliver.
1. How the Pour-and-Scrape Method Works
The process begins by pouring a workable amount of gummy mixture over one section of the mold. A scraper then moves the mixture across the cavity field, helps push it into open cavities, and carries the remaining material toward the next area.
This differs from depositing an individually measured amount into each cavity. Results depend on the relationship between the formula’s viscosity, working temperature, cavity layout, mold support, scraper angle, pressure, and operator technique.
The method may provide a practical path for testing or production without a universal depositor, but it should be treated as a controlled process—not simply as pouring material over a mold.
2. Prepare the Mold and Work Area
Place the silicone mold on a level, stable, fully supported surface. Large flexible molds can shift or bow while being filled or scraped, and that movement can affect fill levels across the cavity field.
Before starting the batch, confirm:
- The mold is clean, dry, flat, and positioned for uninterrupted filling
- The operator can reach the complete working area without moving the mold
- The scraper is suitable for food contact, compatible with the working temperature and sanitation process, appropriately sized, and controllable with even pressure
- The receiving or setting area is ready before the pour begins
- The batch can be poured, scraped, inspected, and moved within its usable time window
Plan the full movement before pouring. Once the mixture begins to thicken, stopping to reposition tools or clear the work area can produce inconsistent results.

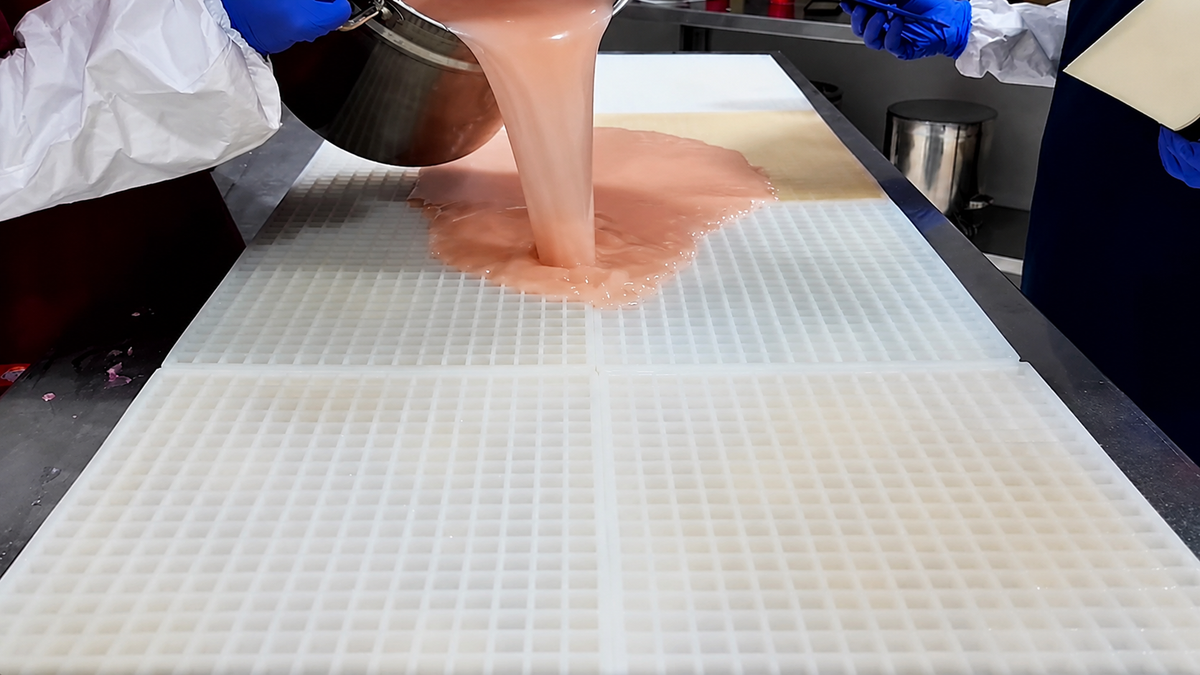

3. Pour a Controlled Amount Across the Mold
Begin with one manageable section rather than covering the complete mold surface at once. The goal is to place enough material in the working area to fill the cavities while keeping the mixture easy to control.
Too little material can require repeated passes and leave partially filled cavities. Too much can increase surface residue, handling, material loss, and cleanup. The correct amount must be established through trials using the intended cavity volume and formula.
Watch how the mixture behaves as soon as it contacts the mold. Its spread rate provides an immediate indication of whether the batch is flowing as expected or beginning to set too quickly.
4. Scrape the Mixture Into the Cavities
Move the scraper through the poured mixture using a controlled angle and firm, even pressure. The first pass distributes the mixture through the cavity field. Additional deliberate passes can fill missed areas and move remaining material forward.
During initial trials, consistency matters more than speed. Record the scraper direction, angle, approximate pressure, number of passes, and total working time. A repeatable method is easier to evaluate, improve, and train than a process that changes with every mold.
Additional scraper passes are not always beneficial. Passes made after the material begins to thicken can disturb already filled cavities or increase residue on the mold surface.
5. Inspect the Filled Mold Before Moving It
Inspect the complete mold while it remains flat on the filling surface. View the cavity field from more than one angle and check for:
- Unfilled or partially filled cavities
- Visible air pockets or voids
- Excess material bridging adjacent cavities
- Uneven fill levels between different areas of the mold
- Sections where the mold lifted, shifted, or bowed
- Surface residue that could interfere with later handling or separation
6. Evaluate the Method at Commercial Scale
A process that fills one mold successfully still needs to be evaluated across the number of molds required for a real batch. Working time, operator reach, mold movement, staging space, and setting capacity can become limiting factors as volume increases.
Measure the complete production cycle—not only the time required to scrape one mold. Track:
- Batch preparation and transfer time
- Pouring and scraping time per mold
- Inspection and correction time
- Movement into the next production stage
- Cleaning and restaging time
- Finished-piece yield, weight variation, and defects
- Material remaining on tools, equipment, and the mold surface
These measurements determine whether the process is economical and repeatable at the intended output. For capacity planning, see how many gummy molds are needed for commercial production. Cavity volume also affects output and finished-piece size; compare 2mL, 3mL, and 5mL gummy molds before selecting tooling.
7. Pour and Scrape Versus a Universal Depositor
| Process consideration | Pour and scrape | Universal depositor |
|---|---|---|
| How cavities are filled | Mixture is spread across the mold and moved into cavities with a scraper | Mixture is delivered through aligned outlets or nozzles |
| Initial setup | Supported mold, controlled pour, suitable scraper, and repeatable operator technique | Compatible molds, depositor setup, alignment, calibration, and operating controls |
| Portion control | Confirmed through process trials and finished-piece measurements | Depends on formula behavior, depositor setup, calibration, and mold compatibility |
| Scaling factors | Working time, surface area, operator reach, labor, staging, and cleanup | Equipment capacity, line integration, mold compatibility, operation, and cleaning |
| Best decision method | Compare real output, consistency, labor, yield, cleaning, and total process cost using the intended formula and mold | |
A depositor may be the better choice when required output, portion control, labor reduction, or production-line integration cannot be achieved reliably with the manual method. Review universal depositor gummy molds when the equipment and mold need to operate as one system.
Pour and scrape can still provide a practical option for trials, early production, or operations whose formula and mold layout perform well with the method. The decision should be based on measured production results rather than equipment cost alone.
Pour-and-Scrape Gummy Mold FAQ
Can pour and scrape replace a universal depositor?
It can serve as the filling method for some formulas and production setups, but it is not a universal replacement. Compare the two approaches using real labor, output, piece-weight consistency, yield, defects, and cleaning requirements.
Does the method work with every gummy formula?
No. The mixture must remain workable long enough to spread across the mold and fill the cavities. A formula that thickens or sets too quickly may be difficult to distribute consistently.
What type of scraper should be used?
Use a scraper appropriate for the facility’s process, food-contact requirements, mold width, working temperature, and sanitation program. It should allow the operator to move the mixture while maintaining controlled, even contact with the mold surface.
How can fill consistency be checked?
Inspect the mold before moving it, then measure finished-piece weights and defects from several areas during trials. Record the results by mold location so uneven sections can be traced back to the filling process.
Can pour and scrape be used with large commercial gummy molds?
Yes. The demonstrated process uses large multi-cavity silicone molds. The mold must remain fully supported, and the operation must account for working time, operator reach, material flow, inspection, and movement after filling.
Related Commercial Gummy Mold Guides
Choose the Mold Around the Filling Process
Mold dimensions, cavity layout, cavity volume, silicone flexibility, and the intended filling method should be considered together. A mold intended for manual filling can require different handling from tooling designed around a specific depositor or production line.
Browse in-stock gummy molds, review bulk gummy molds, or begin a custom gummy mold project based on the required product and production workflow.
