Center-Filled Gummy Manufacturing Guide: Formulation, Molds & Equipment
Gummy Molds Team
Center-filled gummy manufacturing requires the formula, mold, and depositing equipment to be developed as one process. A stable outer shell, a compatible center, controlled depositing, appropriate cavity geometry, and repeatable machine registration all contribute to the finished piece.
This guide focuses on commercial process planning rather than a single recipe. Exact formulation and machine settings must be validated for the product being manufactured.
1. Define the Finished Product First
Before selecting equipment, define what the gummy must actually do. Important questions include:
- What is the target finished piece size?
- What percentage of the piece should visually and functionally be center fill?
- Is the center a liquid, syrup, gel, flavor system, or functional formulation?
- What texture should the outer shell have?
- What shape provides enough internal volume?
- What shelf life and storage conditions are required?
- Will the product be coated, packaged individually, or bulk packed?
2. Develop the Shell Around the Depositing Process
The outer gummy mass needs to flow well enough to deposit, but it also has to create a continuous shell around the center. The ideal behavior depends on the gelling system, solids, temperature, working time, cavity geometry, and depositing-head design.
Shell development should consider:
- Working viscosity
- Setting rate
- Temperature sensitivity
- Elasticity and finished chew
- Wall strength around the center
- Adhesion and sealing around the fill
3. Develop the Center for Flow and Stability
The center must remain depositable while also staying compatible with the outer gummy during storage. A center that works well at the depositor can still cause later problems if moisture, acids, oils, sugars, or active ingredients migrate into the shell.
Commercial development should evaluate viscosity, water activity, flavor intensity, pH, ingredient compatibility, migration, shelf-life behavior, and packaging conditions.
4. Control the Shell-to-Center Relationship
The center cannot be evaluated independently of the shell. Increasing center volume reduces the amount of structural gummy around it. The correct balance depends on piece geometry and formulation strength.
Rather than assuming a universal ratio, validate the finished piece for leakage, handling, demolding, coating, packaging, and storage.

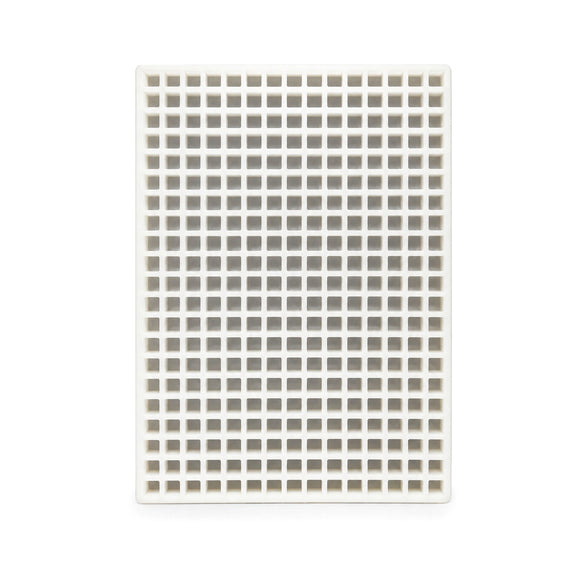

5. Choose a Mold Shape With Usable Internal Volume
A center-filled gummy needs enough cavity depth and central volume to create a meaningful fill while preserving the outer shell. Extremely shallow shapes, narrow sections, thin limbs, or highly detailed cavities may limit the available center volume.
A custom gummy mold can be engineered around the intended piece volume, cavity arrangement, and depositor setup. Review the Commercial Gummy Molds Buyer’s Guide for broader tooling considerations.
6. Match the Mold to the Depositor
Do not assume a mold is machine compatible based only on its overall size. Automated production depends on the complete relationship between:
- Nozzle count and spacing
- Cavity centers
- Tray or carrier dimensions
- Mold registration
- Indexing method
- Target deposit weight
- Machine clearance
- Recipe viscosity
The Gummy Depositor Compatibility Guide provides a structured compatibility checklist.
7. Use the Right Depositing Architecture
Center-filled production generally requires two separate masses to remain available at the depositor. A compatible dual-hopper system keeps the outer shell and center supply separate so they can be delivered in a coordinated depositing pattern.
The Gummy Molds Dual-Hopper Automatic Commercial Gummy Depositor has 20 nozzles total, with 10 nozzles per hopper, and is intended for compatible two-color and center-filled gummy production.
8. Validate Temperature Through the Entire Process
Temperature affects viscosity, flow, working time, and setting behavior. The recipe leaving the cooker may not behave the same after transfer, holding, and depositing. Validate the temperature of both masses through the actual production sequence.
The correct process temperature depends on the formulation. Avoid applying a universal temperature to all gummy or candy systems.
9. Validate Deposit Timing and Registration
Even a well-developed shell and center can fail if the mold is not positioned consistently under the depositing head. Off-center fill, thin shell sections, and inconsistent piece weight can all result from alignment or timing problems.
Production trials should verify nozzle alignment, tray location, repeatability, fill pattern, and finished-piece sectioning.

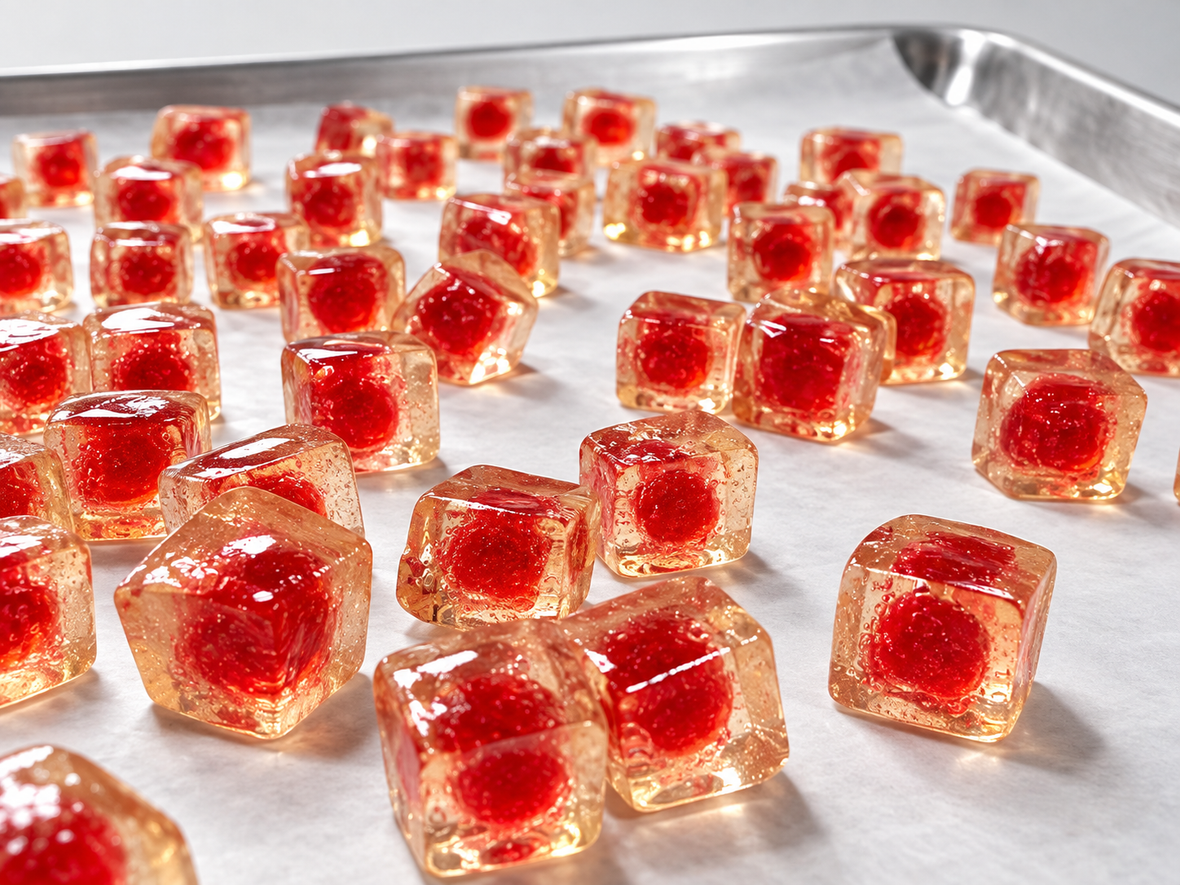

10. Inspect the Finished Gummy Internally
Appearance from the outside is not enough. Cut sample gummies open during development and production checks. Look for:
- Center position
- Shell thickness around the piece
- Voids or air pockets
- Leaks or weak areas
- Center consistency from piece to piece
- Evidence of migration after storage
11. Plan Mold Count Around Setting Time
Depositing speed is only one part of production capacity. If gummies occupy molds for a long setting or curing period, the line may need a larger mold inventory to keep the depositor productive.
Use the Gummy Mold Volume-to-Weight and Batch Yield Calculator to estimate mold count once the piece size, cavities per mold, batch size, and cycle assumptions are established.
12. Build a Process Validation Plan
Before scaling to a full commercial run, document the process variables that matter most. Typical development checks include:
- Shell and center preparation
- Transfer and holding conditions
- Depositor setup
- Mold and tray position
- Deposit consistency
- Setting and demolding
- Coating or finishing
- Packaging
- Accelerated and real-time stability checks
Common Problems in Center-Filled Gummy Manufacturing
Center leaks through the shell
Review shell thickness, piece geometry, deposit positioning, formulation compatibility, and handling after depositing.
Center is not positioned consistently
Check nozzle alignment, tray registration, mold location, viscosity, and depositing sequence.
Piece shape varies
Review total deposited mass, mold level, temperature, product flow, and machine repeatability.
Texture changes during storage
Investigate moisture migration, ingredient compatibility, packaging barrier properties, and storage conditions.
Center-Filled vs. Two-Color Gummies
Both products may use a dual-hopper machine, but the depositing objective is not the same. A two-color gummy can display two masses without one fully containing the other. A center-filled gummy requires a controlled shell around the inner material.
For production planning, keep two-color and center-filled formats separate: two-color gummies can use visible zones, layers, or patterns, while center-filled gummies require the outer gummy mass to contain the second material inside the piece.
Recommended Equipment Planning
Browse the full commercial gummy depositor collection and compare single-hopper, integrated cooker-and-depositor, and dual-hopper configurations based on the actual product being manufactured.
For a deeper explanation of the two-mass equipment architecture, see How Does a Dual-Hopper Gummy Depositor Work?.
